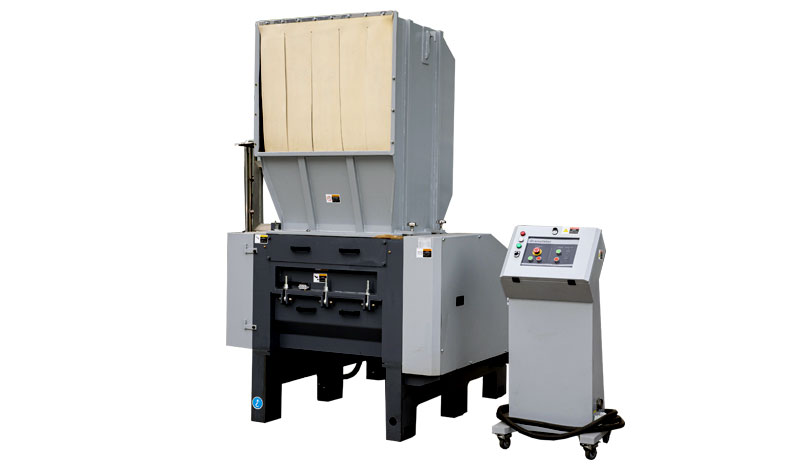

Film and Woven Bag Crusher

Film and Woven Bag Crusher

It's used for crushing film,woven bag and bottle etc.

0
Views: 2,643
Contact Us

Product Details

Model Output(kg/h) Power(kw) Rotating/Fixed blades Weight(kg) Size L×W×H(mm) Cutter Chamber Size(mm)
LDF-C-400 (3640K) 250-300 22 8/3 1000 1020×1850×1710 410×430
LDF-C-600 (4060K) 350-400 37 8/3 1800 1430×2210×1880 460×600
LDF-C-800 (5680K) 500-600 55 10/3 2800 1665×2440×2635 620×820



1.The film crusher is used for crushing film,bottle and so on.The blade material is 6CR2SI.It can be add realizing automatic-feeding ,high degree of automation.
2.It adopts revolving claw-shaped blade and combined blades, the stress is equally pressed, which makes the machine stable and makes little noise. It is very easy to change the mesh, and is efficiency and energy saving.
3.Specially designed hopper with curtains to prevent material flybacks. Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevent machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
4.The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise.' The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge.
6.The film crusher has three models, each with different output, power, shape size.The minimum output is 250kg/h and the maximum output is 600kg/h.It can be customized according to their desired output, power, mesh.

Yuyao Lvdao Plastic and Rubber Machinery Co., Ltd is well known Film and Woven Bag Crusher manufacturers and industrial Film and Woven Bag Crusher suppliers in China. We can make the products following the customers' requirements,like the shape,size,color,logo and other spec details. According to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
