Hard Scrap One Stage Recycling Machine Line

Hard Scrap One Stage Recycling Machine Line

1.Suit for common engineering plastics,such as PC、PA、 ABS、 PP、 PS、 PE、PPR、 POM、PBT、PET etc.

2.Single-stage design,Best choice for manufactory.

3.Procide feeder、conveyor and vacuum exhaust according to your requirement.

Views: 3,130
Contact Us

Product Details

Model Screw dia.(mm) Long dia. ratio Output(kg/h) Power(kw) Rotate speed(r/min)
LDC-SJP-80 Φ80 28:1 50-100 18.5 10-75
LDC-SJP-90 Φ90 28:1 100-150 22 10-75
LDC-SJP-100 Φ100 28:1 150-200 30 10-75
LDC-SJP-110 Φ110 28:1 200-250 37 10-75
LDC-SJP-120 Φ120 28:1 250-300 45 10-75
LDC-SJP-130 Φ130 28:1 300-350 55 10-75
LDC-SJP-140 Φ140 28:1 350-400 75 10-75
LDC-SJP-150 Φ150 28:1 450-450 90 10-75
LDC-SJP-160 Φ160 28:1 450-500 110 10-75

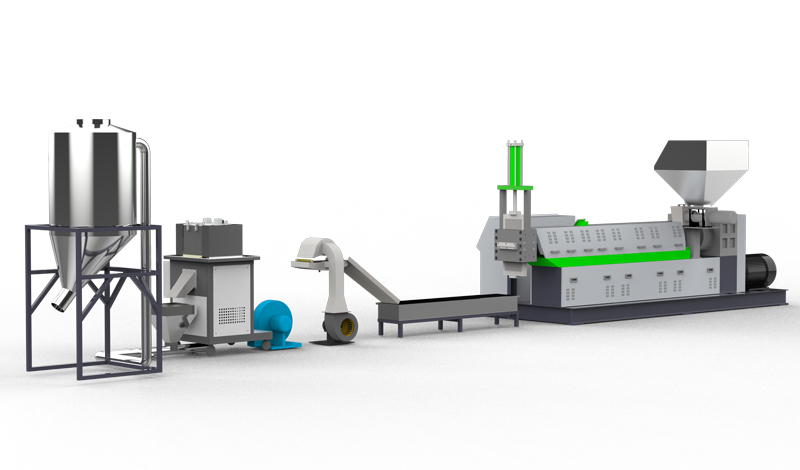

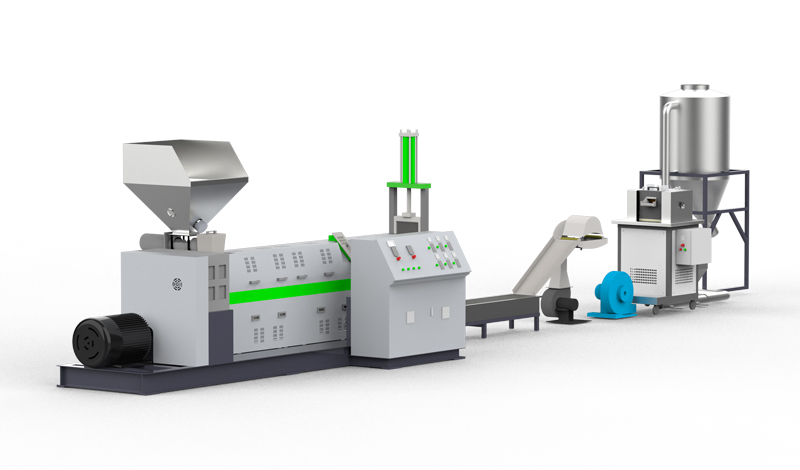

Single-stage plastic granulation machine is widely used in all kinds of common engineering plastics, such as PC, PA, ABS, PP, PS, PE, PPR, POM, PBT, PET, etc. The MACHINE ADOPTS THE DESIGN STRUCTURE OF SINGLE-STAGE EXTRUSION GRANulation, which greatly reduces the cost of the machine. It is suitable for the direct recycling of clean materials and granulation, and it is the first choice for the recycling and granulation of waste materials in the factory.

This plastic granulator can be equipped with iron removal feeder feeding, the use of feeder to achieve uniform feeding. Its core components are 38Crmoal nitriding screw, thread structure after professional design technical team, screw length neck ratio of 28:1, can fully plasticize all kinds of materials, in the production process of the screw speed can reach 75r/min. Net changer can use our company's unique hydraulic double die head or hydraulic up and down suction head, to achieve non-stop net change, net change is convenient and fast, reduce the waste of time, improve production efficiency. With a wide range of models and production volumes ranging from 50kg/h to 500kg/h, this model can provide a variety of choices for every customer.

Yuyao Lvdao Plastic and Rubber Machinery Co., Ltd is well known Hard Scrap One Stage Recycling Machine Line manufacturers and industrial Hard Scrap One Stage Recycling Machine Line suppliers in China. We can make the products following the customers' requirements,like the shape,size,color,logo and other spec details. According to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
