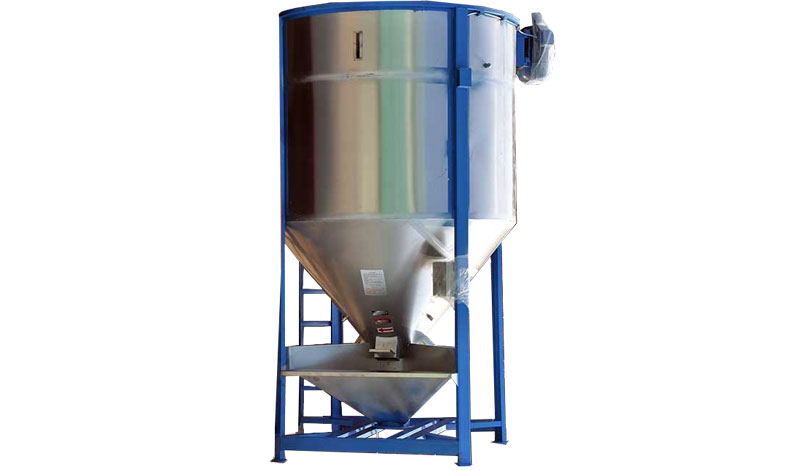

Vertical Plastic Mixing and Drying Machine

Vertical Plastic Mixing and Drying Machine

It is suitable for material storage, mixing and drying.

Views: 2,112
Contact Us

Product Details

Model Model Capacity (T) Power (KW) Dimensions
LDV-500 500 KG 4 360 Φ1250*2500
LDV-1T 1000KG 5.5 360 Φ1550*3000
LDV-2T 2000KG 5.5 360 Φ1950*3200
LDV-3T 3000KG 7.5 360 Φ2150*3600
LDV-5T 5000KG 11 360 Φ2450*4200
LDV-8T 8000KG 11 360 Φ2900*4500
LDV-10T 10000KG 15 300 Φ2900*5200
LDV-15T 15000KG 15 300 Φ3100*5800
LDV-20T 20000KG 18.5 300 Φ3200*7200

1.Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and  easy to wash;The frame is of framework design, solid and durable;Propeller is wholly processed after welding, with high concentricity and steady operation;The standing operation allows little space;Mixing in a sealed manner, uniform mixing and no leakage definitely;
2.Small horse-power, large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes;
3.By the principle of spiral mixing working, conveying the materiel in the hopper to the top of the barrel by the screw spindle, and then it will drop as umbrella-shape and keep mixing circularly all the way in order to mix equably.
4.With the function of automatic operation, overload protection, feeding limit alarm, etc.
5.Less land occupation, large capacity, low power consumption, labor saving, convenient operation, fast and uniform mixing. Vertical plastic powder mixer can be widely used in plastic granule, powder, plastic sheet and so on.
6.Application of industry: pipe material, plastic materials, plastic granulating machine, color master batch, plastic modification, reclaimed materials, recovering and processing reclaimed materials, large injection molding, and so on.

Yuyao Lvdao Plastic and Rubber Machinery Co., Ltd is well known Vertical Plastic Mixing and Drying Machine manufacturers and industrial Vertical Plastic Mixing and Drying Machine suppliers in China. We can make the products following the customers' requirements,like the shape,size,color,logo and other spec details. According to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
