Plastic Film Compacting And Recycling Machine

Plastic Film Compacting And Recycling Machine

1.For film and woven bags recycling and pelletizing.
2.Highly automated,directly feed without crusing in advance.
3.Provide water strap,double-stage and vacuum exhaust according to your requirement.

1+
Views: 1,738
Contact Us

Product Details

Model Screw dia.(mm) Long dia. ratio Output(kg/h) Main Motor Power(kw) Agglomerator Power(kw) Rotate Speed(r/min)
LDM-85 Φ85 33:1 200-230 55 37 10-90
LDM-100 Φ100 33:1 250-300 75 55 10-90
LDM-130 Φ130 33:1 450-500 132 90 10-90
LDM-160 Φ160 33:1 600-700 160 110 10-90
LDM-180 Φ180 33:1 800-1000 220 132 10-90

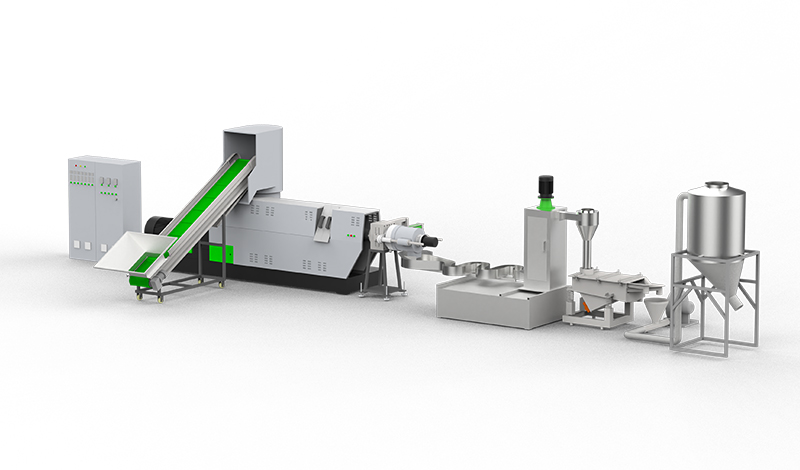

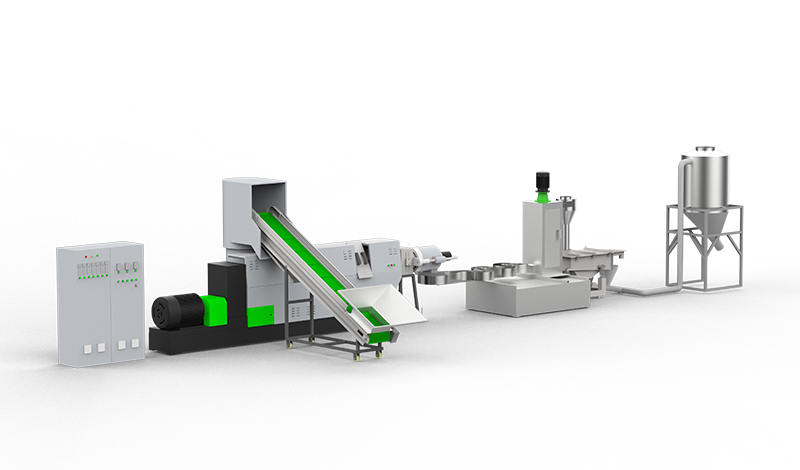

There is a great difference between the film aggregate compacting granulating machine and the ordinary film granulating machine. The film does not need to be crushed during granulation, which reduces the noise during production. The film is directly transmitted to the compaction chamber through the conveyor belt. The compaction chamber is similar to a film granulator. The loose film is crushed and compacted through high-speed rotation, and the compacted material enters the granulator screw through the feed port on the side wall of the compaction chamber to achieve a high degree of automation and integration.

The appearance of film compacting recycling machine unit makes the wish of film recycling pelletizing to produce 1 ton become a reality, which greatly improves the production efficiency of enterprises, and also reduces the labor cost with a high degree of integration. The machine can also be equipped with water strip, main and secondary engines, vacuum exhaust and other equipment as required.

Yuyao Lvdao Plastic and Rubber Machinery Co., Ltd is well known Plastic Film Compacting And Recycling Machine manufacturers and industrial Plastic Film Compacting And Recycling Machine suppliers in China. We can make the products following the customers' requirements,like the shape,size,color,logo and other spec details. According to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
