Foam Recycling Machine Line

Foam Recycling Machine Line

1.For EPS XPS foam recycling ans pelletizing.
2.Special screw with high speed of compressing and melting.
3.Integration of foam crushing-loading-pelletizing for easy operation.

Views: 1,773
Contact Us

Product Details

Model Screw dia(mm) Long dia ratio Output(kg/h) Screw rotate speed(r/min) Power(kw)
LDG-SJP-160-95 Φ160、Φ95 4:1、8:1 60-90 560 15/7.5
LDG-SJP-185-105 Φ185、Φ105 4:1、8:1 100-150 560 22/7.5
LDG-SJP-220-120 Φ220、Φ120 4:1、8:1 150-200 560 37/11
LDG-SJP-250-125 Φ250、Φ125 4:1、8:1 200-250 560 55/15

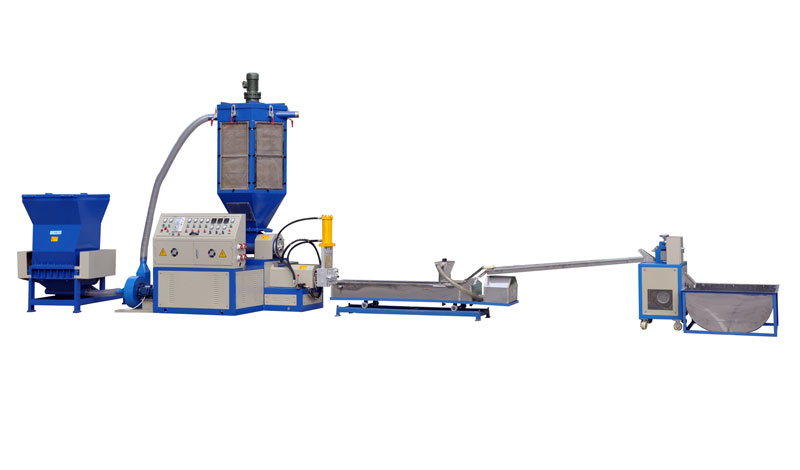

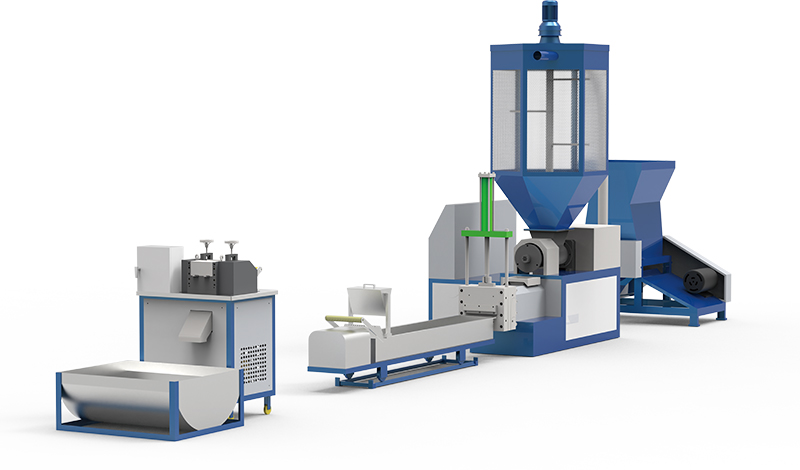

This is our company LDG series plastic pelletizing machine.This machine is suitable for recycling EPS XPS foam materials,especially for sorting materials and transform rubbish into treasure. It is an ideal choice for environmental protecting of the supermarket and residential areas. This machine line adopt the fast compact,fast melting, extruding with filter and one-step processing makes the plastic granules.Hot-melted foam and cold-pressed foam are not suitable for this machine because this machine is for loose material. It is composed by crusher、convey blower、storage、main extruder、second extruder、water tank、laying plate、blower、cutter、storage.

It has shredder to crush the foam block material into small pieces, then easy to feed into the extruder by blowing system.With single screw extruder, the plastic can be plasticized totally, keep the capacity steady and without air hole in the final granules.With non-stop hydraulic screen changer, you can exchange the screen when the machine is running.

Yuyao Lvdao Plastic and Rubber Machinery Co., Ltd is well known Foam Recycling Machine Line manufacturers and industrial Foam Recycling Machine Line suppliers in China. We can make the products following the customers' requirements,like the shape,size,color,logo and other spec details. According to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
