LDK PE Water Ring Hot Cutting Granulator

LDK PE Water Ring Hot Cutting Granulator

1. It' s used for LDPE,HDPE hard scrap recycling and pelletizing.
2.Round pellet , have the similar shape with the new pellet.
3.According to customers' requirement ,shaker can be adopted.
4. Water ring pelletizing could avoid the problem of strand.

0
Views: 1,093
Contact Us

Product Details

Model Screw dia.(mm) Long dia. ratio Output(kg/h) Rotate Speed(r/min) Power(kw)
LDK-SJP-100-100 Φ100、Φ100 28:1-10:1 150-200 10-75 37/11
LDK-SJP-110-110 Φ110、Φ110 28:1-10:1 200-250 10-75 45/15
LDK-SJP-120-120 Φ120、Φ120 28:1-10:1 250-300 10-75 55/18.5
LDK-SJP-130-130 Φ130、Φ130 28:1-10:1 300-350 10-75 75/22
LDK-SJP-140-140 Φ140、Φ140 28:1-10:1 350-400 10-75 90/30
LDK-SJP-150-150 Φ150、Φ150 28:1-10:1 400-450 10-75 110/45

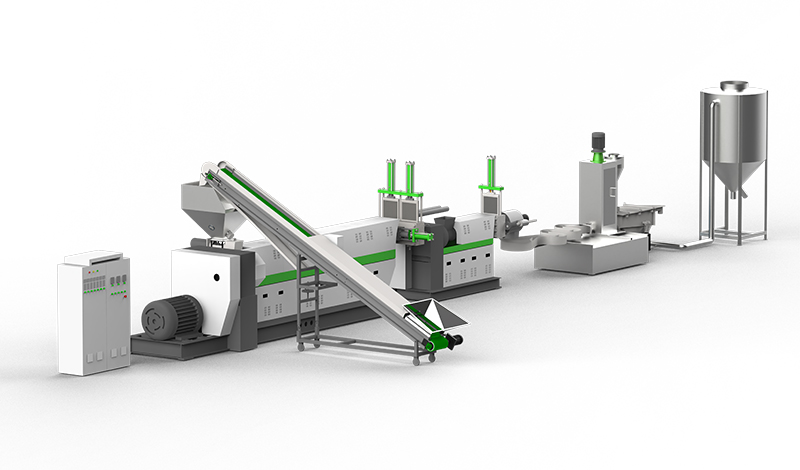

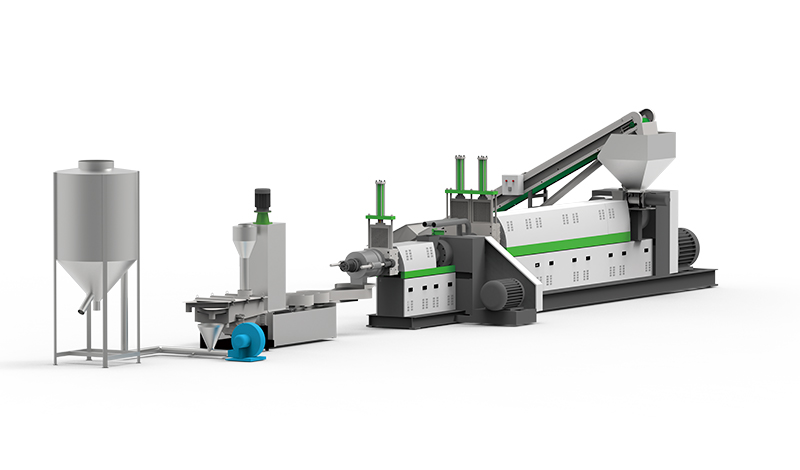

This is our LDK series plastic pelletizing machine.Used for crushing and recycling LDPE HDPE series. Such as plastic bags, plastic wrap, plastic wrap,etc.The extrusion has high compression, full particles, and the shape is similar to the new slice. It can produce rich, dense and glossy particles.This machine line is fed through the magnet conveyor, and the raw material is put into the feeder. The feeder can realize uniform feeding and improve the stability of the machine. The raw material is plasticized and pushed to the filter die head through the rotation of the main screw. Then the raw material enters the auxiliary machine to realize secondary plasticization and filtration.Through the water ring hot cutting realize straight -cutting and underwater cutting process allows the molten plastics to be out and cooled directly, so the water can be removed efficiently after high-speed dewatering process provinga better drying effect. The subsequent process is equipped with the vibrating screen to cool down the granule, the imputer granule will be removed automatically so the automation and easy operation can be achieved for the making process.

Yuyao Lvdao Plastic and Rubber Machinery Co., Ltd is well known LDK PE Water Ring Hot Cutting Granulator manufacturers and industrial LDK PE Water Ring Hot Cutting Granulator suppliers in China. We can make the products following the customers' requirements,like the shape,size,color,logo and other spec details. According to the different characteristics of various plastic materials to develop a batch of new products, maximize to meet the needs of customers.
